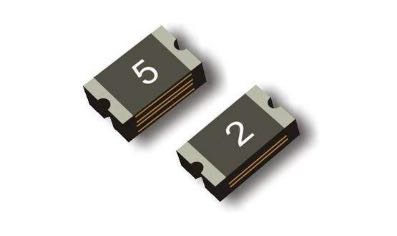

SMD0805封装系列
运用范围：所有高密度电路板
产品特性：表面贴装组件，比普通SMD保险丝动作更快
工作电流：0.05A~1.5A
工作温度范围：-40℃ to 85℃
无铅、无卤环保产品，符合RoHS标准和REACH标准
安规认证：UL
产品规格书
电气特性（25°C ）：
| 型 号 | 印码 | 工作電壓 | 最大電流 | 保持電流 | 跳閘電流 | 消耗功率 | 最大電流跳閘時間 | 電阻範圍 | ||
| V max | Imax | I hold | I trip | Typ. | 电流 | 时间 | R i min | R1max | ||
| (Vdc) | (A) | (A) | (A) | (W) | (A) | (Sec) | (W) | (W) | ||
| SMD0805R005SF | 1 | 15 | 30 | 0.05 | 0.15 | 0.5 | 0.5 | 1.5 | 1.5 | 18 |
| SMD0805R010SF | 1 | 15 | 30 | 0.1 | 0.3 | 0.5 | 0.5 | 1.5 | 0.75 | 6 |
| SMD0805R020SF | 2 | 9 | 30 | 0.2 | 0.5 | 0.5 | 8 | 0.02 | 0.55 | 3.5 |
| SMD0805R035SF | 3 | 6 | 30 | 0.35 | 0.75 | 0.5 | 8 | 0.1 | 0.2 | 1.2 |
| SMD0805R035SF12v | 3 | 12 | 30 | 0.35 | 0.75 | 0.5 | 8 | 0.1 | 0.2 | 1.2 |
| SMD0805R050SF | 5 | 6 | 30 | 0.5 | 1 | 0.5 | 8 | 0.1 | 0.1 | 0.85 |
| SMD0805R050SF12v | 5 | 12 | 30 | 0.5 | 1 | 0.5 | 8 | 0.1 | 0.1 | 0.85 |
| SMD0805R050SF16v | 5 | 16 | 30 | 0.5 | 1 | 0.5 | 8 | 0.1 | 0.1 | 0.85 |
| SMD0805R050SF24v | 5 | 24 | 30 | 0.5 | 1 | 0.5 | 8 | 0.1 | 0.1 | 0.85 |
| SMD0805R075SF | 7 | 6 | 35 | 0.75 | 1.5 | 0.6 | 8 | 0.2 | 0.07 | 0.385 |
| SMD0805R075SF12v | 7 | 12 | 35 | 0.75 | 1.5 | 0.6 | 8 | 0.2 | 0.07 | 0.385 |
| SMD0805R100SF | 0 | 6 | 35 | 1 | 1.95 | 0.6 | 8 | 0.3 | 0.04 | 0.23 |
| SMD0805R100SF12v | 0 | 12 | 35 | 1 | 1.95 | 0.6 | 8 | 0.3 | 0.04 | 0.23 |
| SMD0805R110SF | 0 | 6 | 35 | 1.1 | 2.2 | 0.6 | 8 | 0.3 | 0.035 | 0.21 |
| SMD0805R110SF12v | 0 | 12 | 35 | 1.1 | 2.2 | 0.6 | 8 | 0.3 | 0.035 | 0.21 |
| SMD0805R125SF | 12 | 6 | 35 | 1.25 | 2.5 | 1.5 | 8 | 0.6 | 0.025 | 0.14 |
| SMD0805R150SF | 15 | 6 | 35 | 1.5 | 3 | 1 | 8 | 0.5 | 0.015 | 0.13 |
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流.
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.

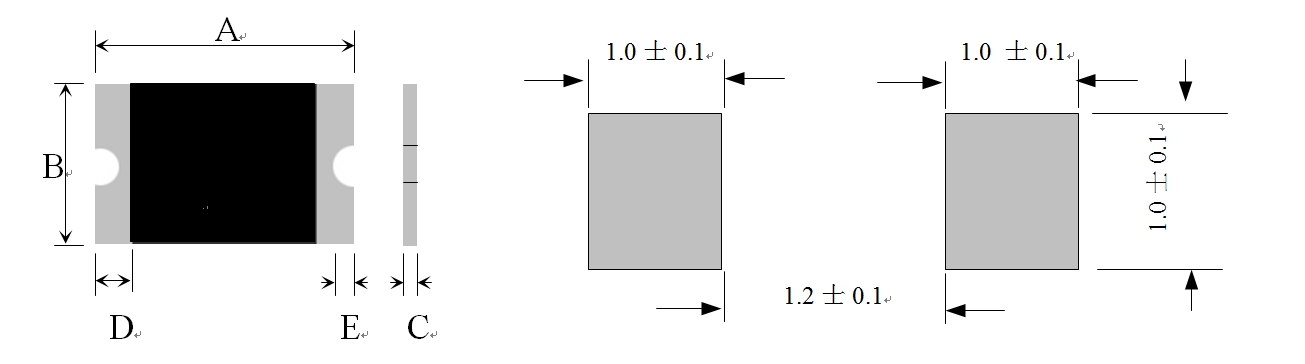

外形尺寸（mm）：
| 型 号 | A | B | C | D | E | |||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |
| SMD0805R005SF | 2 | 2.2 | 1.2 | 1.5 | 0.4 | 0.9 | 0.2 | 0.1 |
| SMD0805R010SF | 2 | 2.2 | 1.2 | 1.5 | 0.4 | 0.9 | 0.2 | 0.1 |
| SMD0805R020SF | 2 | 2.2 | 1.2 | 1.5 | 0.35 | 0.8 | 0.2 | 0.1 |
| SMD0805R035SF | 2 | 2.2 | 1.2 | 1.5 | 0.35 | 0.8 | 0.2 | 0.1 |
| SMD0805R035SF12v | 2 | 2.2 | 1.2 | 1.5 | 0.35 | 0.8 | 0.2 | 0.1 |
| SMD0805R050SF | 2 | 2.2 | 1.2 | 1.5 | 0.35 | 0.8 | 0.2 | 0.1 |
| SMD0805R050SF12v | 2 | 2.2 | 1.2 | 1.5 | 0.35 | 0.8 | 0.2 | 0.1 |
| SMD0805R050SF16v | 2 | 2.2 | 1.2 | 1.5 | 0.5 | 1.1 | 0.2 | 0.1 |
| SMD0805R050SF24v | 2 | 2.2 | 1.2 | 1.5 | 0.5 | 1.1 | 0.2 | 0.1 |
| SMD0805R075SF | 2 | 2.2 | 1.2 | 1.5 | 0.5 | 1 | 0.2 | 0.1 |
| SMD0805R075SF12v | 2 | 2.2 | 1.2 | 1.5 | 0.5 | 1 | 0.2 | 0.1 |
| SMD0805R100SF | 2 | 2.2 | 1.2 | 1.5 | 0.7 | 1.2 | 0.2 | 0.1 |
| SMD0805R100SF12v | 2 | 2.2 | 1.2 | 1.5 | 0.7 | 1.2 | 0.2 | 0.1 |
| SMD0805R110SF | 2 | 2.2 | 1.2 | 1.5 | 0.7 | 1.2 | 0.2 | 0.1 |
| SMD0805R110SF12v | 2 | 2.2 | 1.2 | 1.5 | 0.7 | 1.2 | 0.2 | 0.1 |
| SMD0805R125SF | 2 | 2.2 | 1.2 | 1.5 | 1 | 1.5 | 0.2 | 0.1 |
| SMD0805R150SF | 2 | 2.2 | 1.2 | 1.5 | 1 | 1.5 | 0.2 | 0.1 |
典型温度折减及动作时间曲线图（25°C）：

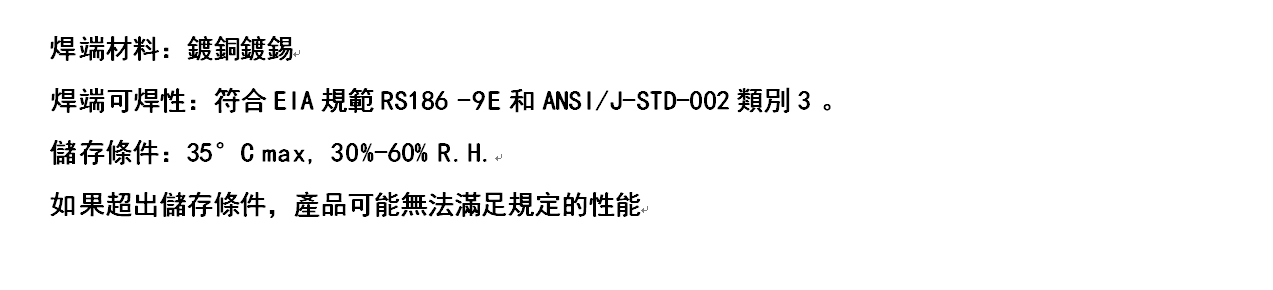

焊接及储存条件：
